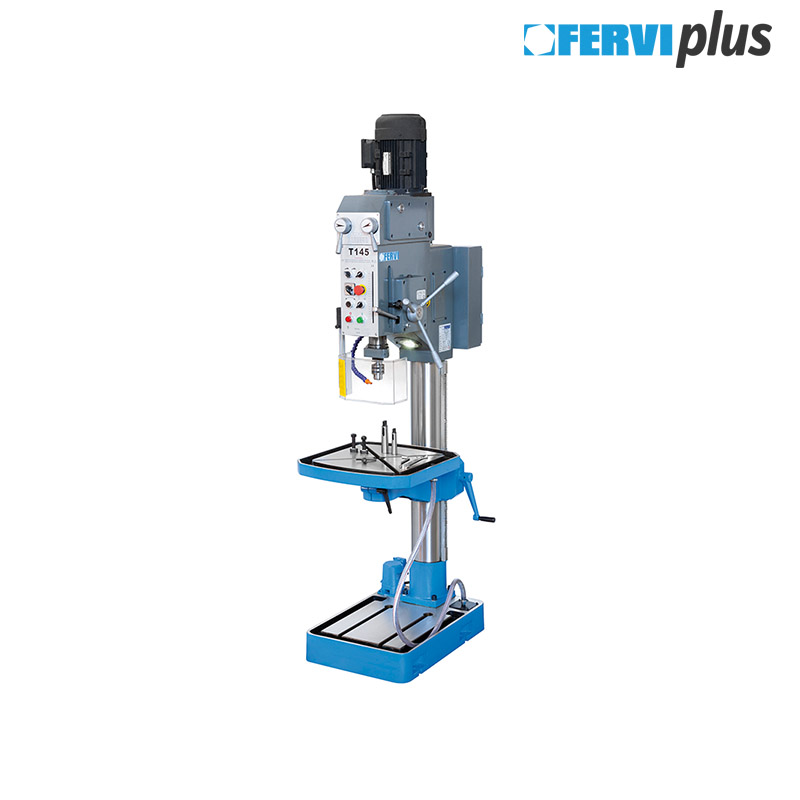

GEARED DRILLING MACHINE

Art. T145
REVERSIBLE, WITH AUTOMATIC FEEDING, COOLANT SYSTEM AND EQUIPPED WITH LIGHT, PARTIALLY ROTATING TABLE.
Max drilling capacity on cast iron with pre-drilling hole
Ø 45 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 40 mm
Continuous drilling capacity
Ø 35 mm
Spindle taper
MT 4
Chuck sizes
1 ÷ 13 mm B16
Spindle speed
(18) 50 ÷ 1450 rpm
Spindle travel
180 mm
Spindle rotation
Dx - Sx
Quill
Ø 75 mm
Column
Ø 150 mm
Feed range
(2) 0,1 - 0,20 mm/rev
Distance between spindle axis and column
350 mm
Distance between spindle nose and table
780 mm
Distance between spindle nose and base
1320 mm
Table dimensions
560 x 560 mm
Slot
18 mm
Tilting table
±90°
Base dimensions
500 x 730 mm
Motor
400 V 50 Hz 1,5 / 2,4 kW
Cooling pump
400 V 50 Hz 40 W
Dimensions
935 x 530 x 2280 mm
Net weight
550 kg
Packaging dimensions
2275 x 1100 x 575 h mm
Gross weight
600,00 kg
EAN Code
8012667340582
