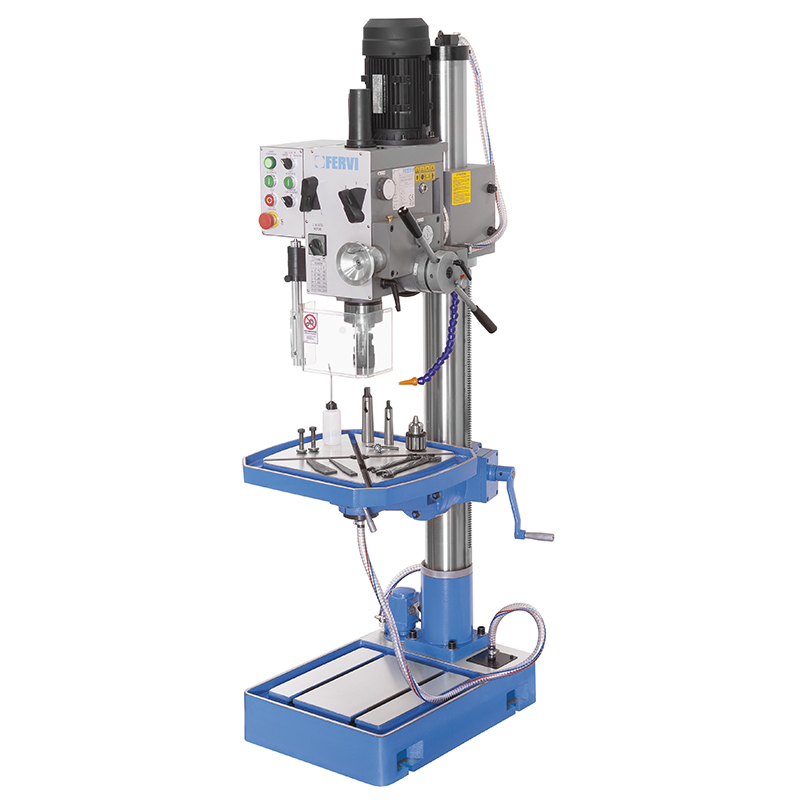

GEARED DRILLING MACHINE

Art. T041DA
REVERSIBLE, TILTING HEAD, COOLING SYSTEM, TIMED TAPPING AND AUTOMATIC DOWN FEED, ROTATING TABLE.
Max drilling capacity on cast iron with pre-drilling hole
Ø 40 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 35 mm
Continuous drilling capacity
Ø 30 mm
Tapping capacity
22 mm
Spindle taper
MT 4
Chuck sizes
1 ÷ 16 B16
Spindle speed
(12 ) 75 ÷ 3200 rpm
Spindle travel
120 mm
Spindle rotation
Dx - Sx
Head tilt left and right
±60°
Quill
Ø 76 mm
Column
Ø 115 mm
Feed range
(3) 0,1 - 0,18 - 0,26 mm/rev
Distance between spindle axis and column
297 mm
Distance between spindle nose and table
715 mm
Distance between spindle nose and base
1180 mm
Table dimensions
500 x 460 mm
Slot
14 mm
Base dimensions
470 x 670 mm
Motor
400 V 50 Hz 1,1/1,5 kW
Dimensions
700 x 480 x 1850 mm
Net weight
340 kg
Packaging dimensions
760x730x1890 h mm
Gross weight
327,00 kg
EAN Code
8012667346188
