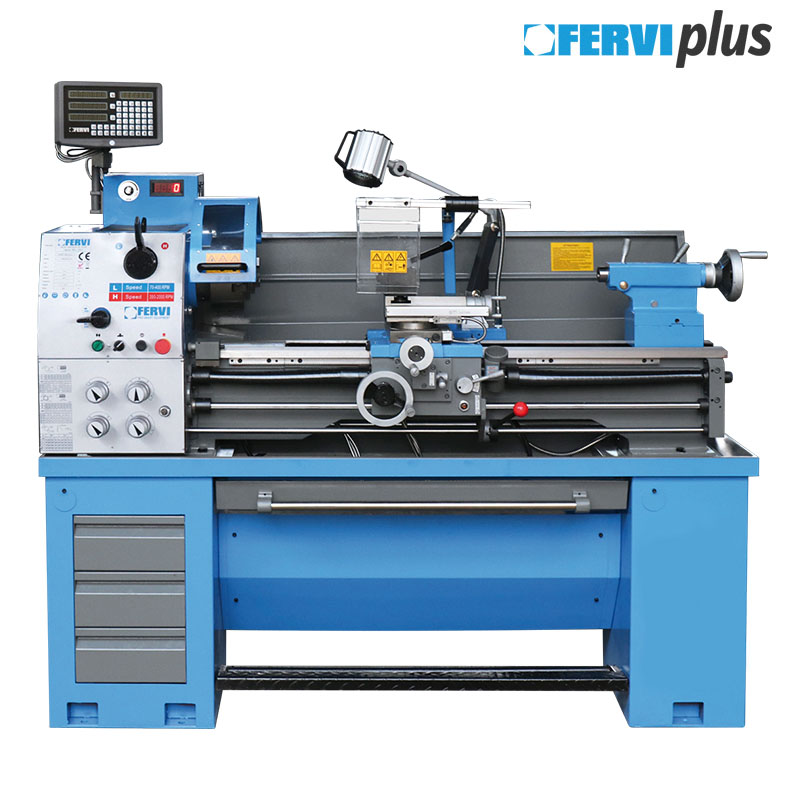

GEAR HEAD LATHE WITH INVERTER AND READ OUT
Art. T069/400VI3A
3 AXIS READ OUT AND SEMI NORTON GEAR BOX. TURNING BAR WITH ADJUSTABLE CLUTCH AND ROTATION SPEED DISPLAY.
Max swing over the bed
380 mm
Max swing over the cross slide
225 mm
Max swing over the gap
503 mm
Max length of workpiece
1000 mm
Spindle taper
Camlock D1-5
Variable spindle speed
(2) 70 ÷ 400 | 50 ÷ 2000 rpm
Longitudinal feeds
0,052 - 1,392 mm/rev
Cross feeds
0,014 - 0,380 mm/rev
Metric threads
0,4 - 7 mm
Dimensions
1820 x 90 x 1650 h mm
Packaging dimensions
1940x915x1640h mm
Included in the price
- 3+3 jaw self centering chuck Ø 200 mm
- 4 Reversible indipendent jaws chuck Ø 200 mm
- Reduction sleeve MT 6/4
- Face plate Ø 320 mm
- Follow rest
- Steady rest
- 2 x Dead center MT 4
- Live center MT 4
- Thread dial
- Turret guard
- Leadscrew hood
- Chuck safeguard
- Full length splash guard
- T0AE quick change tool post
- Working lamp
- Cooling system
- Foot brake
- Clutch on turning bar
- Quick locking tailstock carriage
- Wagon gears in oil bath
