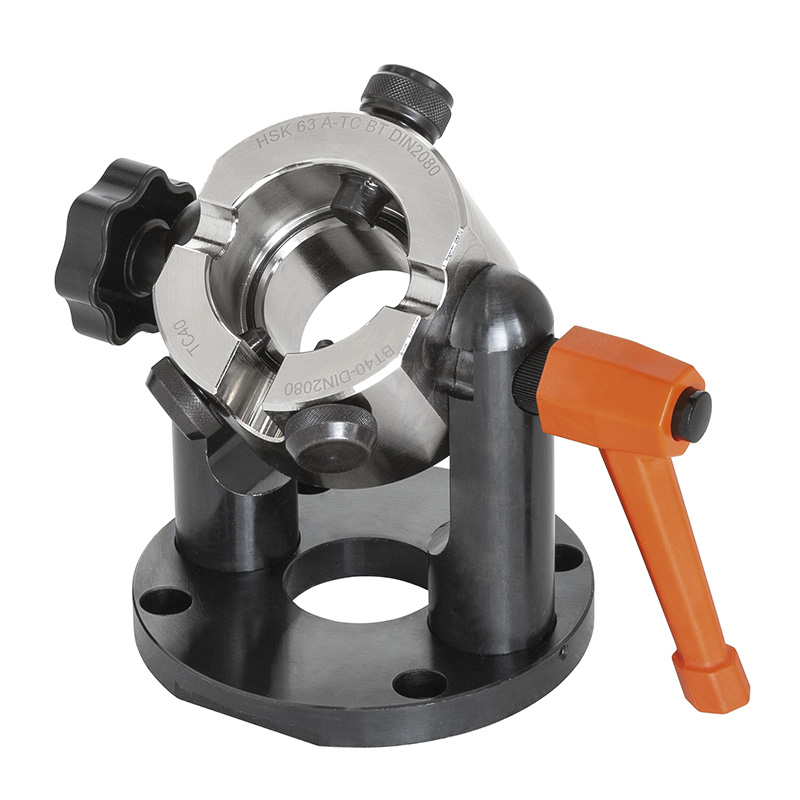

CHUCK HOLDER TILTABLE
Art. S007/40
DIN 2080, DIN 69871/A AND MAS BT-TC, IT ALLOWS THE ORIENTATION OF THE TOOL HOLDERS ON THE VERTICAL AND HORIZONTAL AXES TO FACILITATE THE ASSEMBLY OF THE TOOLS. THE CONE OF THE TOOL HOLDERS IS PROTECTED BY TWO SUITABLY POSITIONED O-RINGS. STEEL CONE, OPERATING LEVERS IN THERMOPLASTIC MATERIAL, BASE TO BE FIXED TO THE WORKBENCH WITH 4 SCREWS.
| Dimensions |
Base |
Taper |
Gross weight |
EAN Code |
| 230 x 150h mm |
Ø 150 mm |
ISO 30 DIN 2080 - SK30 DIN 69871 - BT30 - CAT30 - HSK50A - CAPTO C5 |
6,98 kg |
8012667179229 |
| 235 x 155h mm |
Ø 150 mm |
ISO 40 DIN 2080 - SK40 DIN 69871 - BT40 - CAT40 - HSK63A - CAPTO C6 |
6,52 kg |
8012667179236 |
| 265 x 200h mm |
Ø 180 mm |
ISO 50 DIN 2080 - SK50 DIN 69871 - BT50 - CAT50 - HSK100A - CAPTO C10 |
10,61 kg |
8012667179243 |
