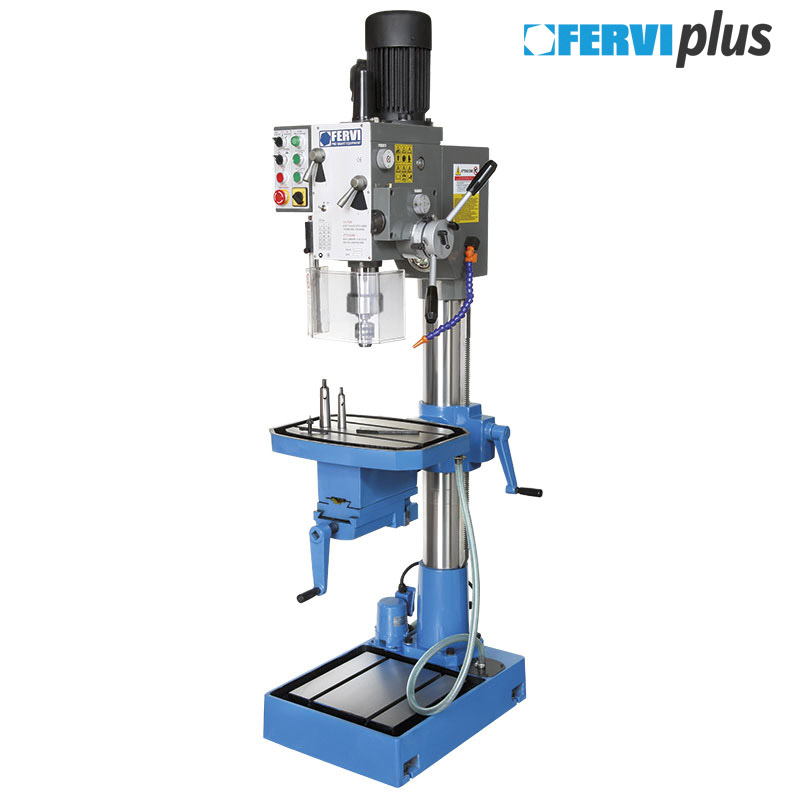

GEARED DRILLING MACHINE

Art. T066
6.048,00
VAT EXCLUDED
REVERSIBLE, WITH AUTOMATIC FEEDING, COOLANT SYSTEM, REVERSIBLE TABLE WITH 145MM VICE INCLUDED, EQUIPPED WITH LIGHT.
Max drilling capacity on cast iron with pre-drilling hole
Ø 40 mm
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 35 mm
Continuous drilling capacity
Ø 30mm
Spindle taper
MT 4
Chuck sizes
1 ÷ 13 mm B16
Spindle speed
(12) 75 ÷ 3200 rpm
Spindle travel
125 mm
Spindle rotation
Dx - Sx
Quill
Ø 75 mm
Column
Ø 125 mm
Feed range
(3) 0,1 - 0,18 - 0,26 mm/g
Distance between spindle axis and column
320 mm
Distance between spindle nose and table
80-680 mm
Distance between spindle nose and base
1140 mm
Table dimensions
500 x 380 mm
Slot
14 mm
Tilting table
±90°
Vice
125 mm
Base dimensions
470 x 670 mm
Motor
400 V 50 Hz 1,1/1,5 kW
Cooling pump
400 V 50 Hz 75 W
Dimensions
500 x 750 x 2000 mm
Net weight
400 kg
Packaging dimensions
800 x 570 x 2120 h mm
Gross weight
427,50 kg
EAN Code
8012667243937
