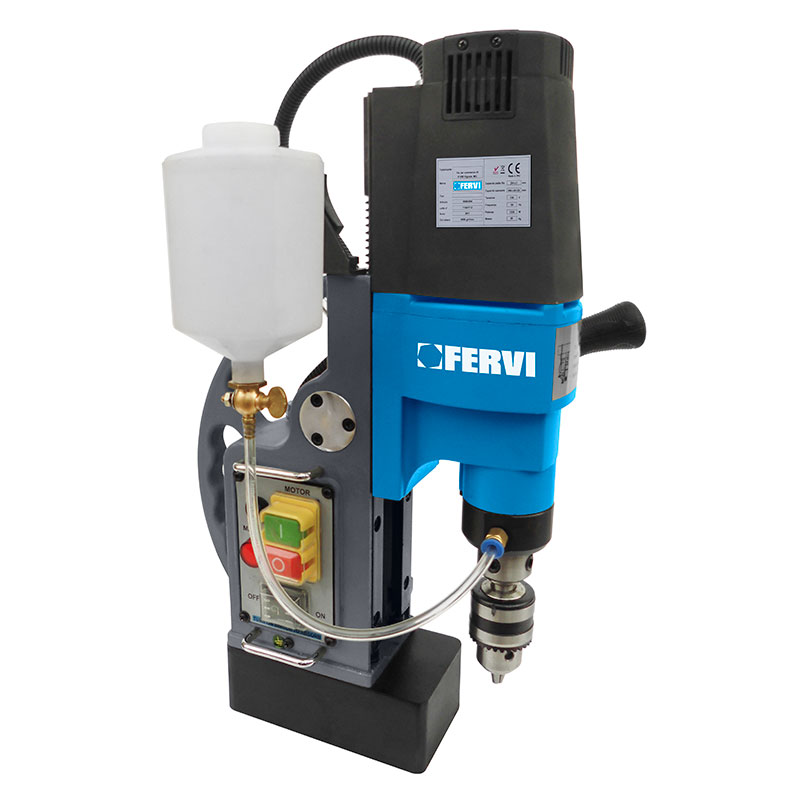

MAGNETIC DRILL
Promo 20%
WITH COOLANT SYSTEM FOR CORE DRILLS UNTIL 30MM WITH WELDON SHANK Ø 19.05MM AND STRAIGHT SHANK DRILLS UNTIL Ø 20MM WITH REDUCED SHANK Ø 13 - 16MM.
Continuous drilling capacity
ø 20 mm
Max working capacity
ø 30 mm
Max. magnetic force
11000 N
Approx spindle speeds
450 rpm
Base dimensions
170 x 90 mm
Single-phase motor
230 V 50 Hz 1.1 kW
Dimensions
360 x 280 x 490 mm
Packaging dimensions
520 x 470 x 250 h mm
