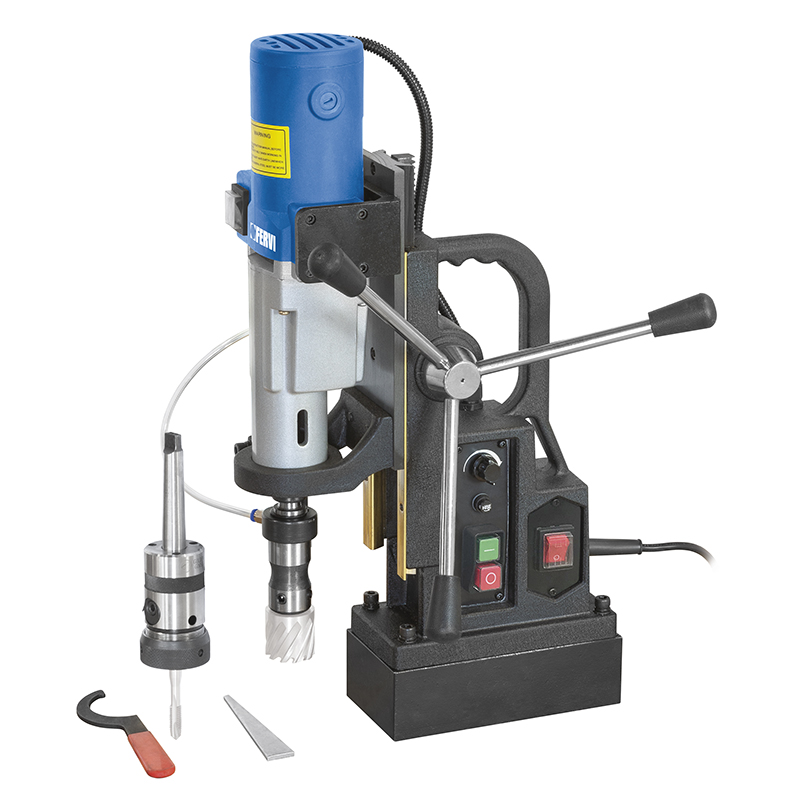

MAGNETIC TAPPING/DRILL

Art. 0518/38M
WITH COOLANT SYSTEM FOR CORE DRILLS UNTIL 38MM WITH WELDON SHANK Ø 19,05MM AND CONICAL DRILL BITS UNTIL Ø 20MM. TAPPING CAPACITY M3 - M16.
Where to buy
add to favorites
Continuous drilling capacity
Ø 20 mm
Spindle taper
2
Arbor
Weldon Ø 19,05 mm
Spindle travel
180 mm
Max working capacity
Ø 38 mm
Tapping capacity
M3 ÷ M16
Max. magnetic force
12000 N
Spindle speed
0 ÷ 500 | 0 ÷ 800 rpm
Motor
230 V 50 Hz 1,05 kW
Base dimensions
205 x 105 mm
Dimensions
280 x 320 x 510h mm
Net weight
20 kg
Packaging dimensions
555x465x190 h mm
Gross weight
20,00 kg
EAN Code
8012667358952

Included in the price
  • Plastic case
  • MT2 B18 holder
  • MT2/1 reduction adapter
  • MT2 to Weldon adapter
