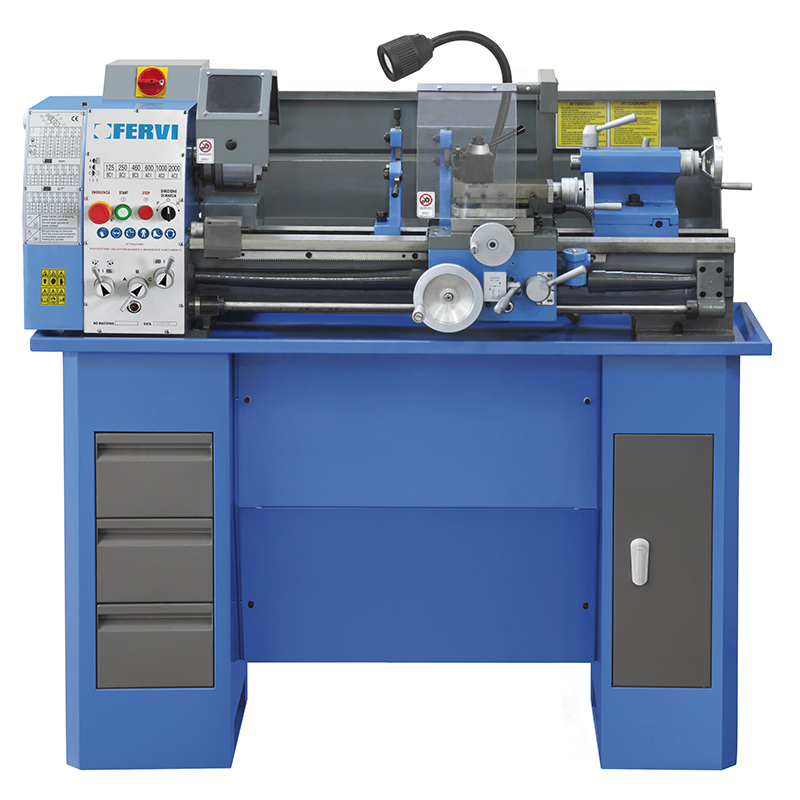

GEAR HEAD LATHE
Art. T750
BENCH LATHE SEMI NORTON GEAR BOX AND BELT SPEED, CHANGE, LONGITUDINAL AND CROSS FEEDS, TURNING, LEADSCREW, PARTIALLY ASSEMBLED BENCH WITH 3 DRAWERS, AND CABINET. TURNING BAR WITH ADJUSTABLE CLUTCH.
Max swing over the bed
290 mm
Max swing over the cross slide
175 mm
Max length of workpiece
750 mm
Spindle nose Camlock
Camlock D1-4
Spindle speed
(6) 125 ÷ 2000 rpm
Longitudinal feeds
0,07 ÷ 1,0 mm/rev
Cross feeds
0,0017 ÷ 0,25 mm/rev
Metric threads
(18) 0,2 ÷ 3,5 mm
Inch threads
(21) 8 ÷ 56 TPI
Lathe dimensions
1450 x 720 x 1280 mm
Dimensions
1450 x 720 x 1280 mm
Packaging dimensions
1450 x 750 x 955 h mm
Included in the price
- 3+3 jaw self centering chuck Ø 125 mm
- 4 Reversible indipendent jaws chuck Ø 160 mm
- Face plate Ø 200 mm
- Flange for 4-jaw chuck Ø 160 mm
- Follow rest
- Steady rest
- 2 x Dead centers MT 3
- Reduction sleeve MT 5/3
- Clutch on turning bar
- Thread dial
- Leadscrew hood
- Turret safeguard with micro switch
- Chuck safeguard with micro switch
- Full length splash guard
- Quick change tool post T0AE
- LED light
- Quick stop tailstock with a swing of 75 mm
- Saddle gears in oil
