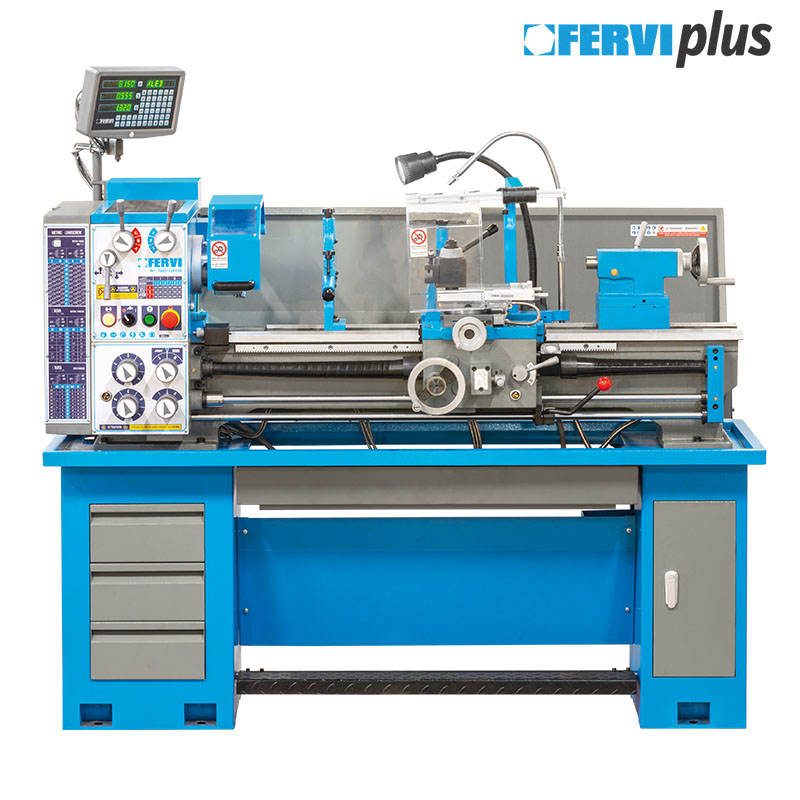

GEAR HEAD LATHE WITH READ OUT
news
Art. T997/230V3A
3 AXIS READ OUT, SEMI NORTON GEAR BOX. TURNING BAR WITH ADJUSTABLE CLUTCH.
Max swing over the bed
320 mm
Max swing over the cross slide
180 mm
Distance between centers
1000 mm
Spindle nose Camlock
Camlock D1-4
Spindle speed
(18) 75-1800 rpm
Longitudinal feeds
(40) 0,053 - 1,291 mm/rev
Cross feeds
(40) 0,011 - 0,275 mm/rev
Metric threads
(32) 0,4 - 7 mm
Inch threads
(36) 4 - 60 TPI
Motor
230 V 50/60 Hz 1.5 kW
Dimensions
1850 x 700 x 1550 mm
Included in the price
- 3+3 jaw self centering chuck Ø 160 mm
- 4 Reversible indipendent jaws chuck Ø 200 mm
- Face plate Ø 250 mm
- Follow rest
- Steady rest
- Reduction sleeve MT 5/3
- Dead center MT 3
- Dead center MT 5
- Live center MT 3
- Foot brake
- Thread dial
- Leadscrew protection
- Turret protection
- Chuck safeguard
- Full length splash guard
- T0AE quick change tool post
- Working lamp LED
- Quick locking tailstock carriage
- Cooling system
- Clutch on turning bar
- Wagon gears in oil bath
