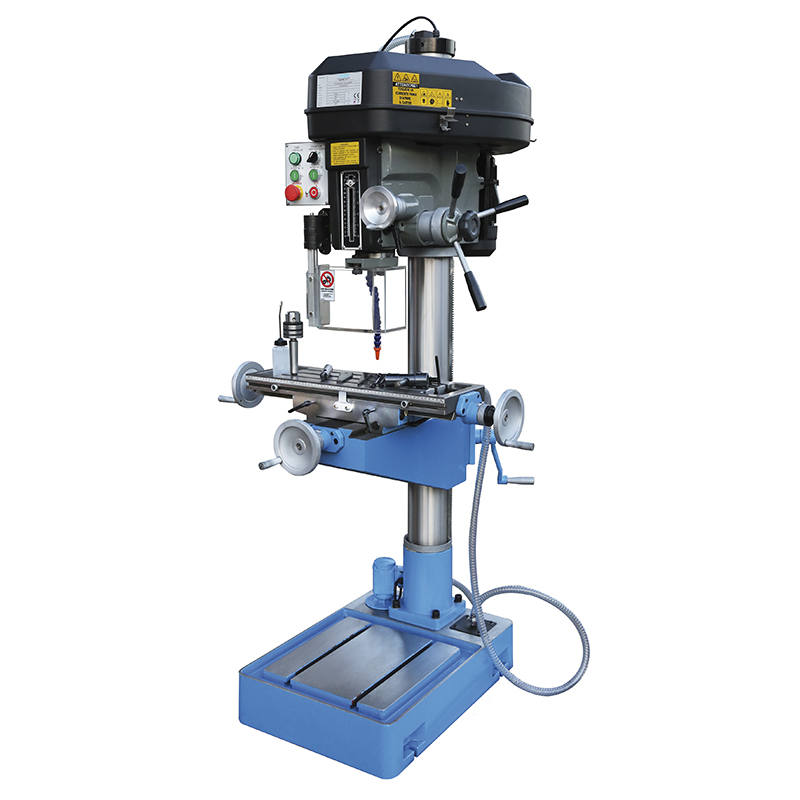

FLOOR DRILLING MILLING MACHINE
WITH ROTATION SELECTION AND DRIVE BELT.
Max drilling capacity on steel with pre-drilling hole(s235jr)
32 mm
Face milling cutter max
80 mm
End milling cutter max
20 mm
Chuck sizes
1 - 13 mm B16
Approx spindle speeds
100 ÷ 2080 rpm
Manual vertical feed division
0,05 mm
Distance between chuck and column
197 mm
Distance between spindle nose and table
600 mm
Table dimensions
585 x 190 mm
Base dimensions
470 x 670 mm
Cooling pump
400v 50 Hz 0.4 KW
Dimensions
928 x 910 x 1700h mm
Packaging dimensions
830 x 740 x 1860 mm
Included in the price
- Drill chuck with key 1 ÷ 13 B16
- Spindle drilled MT 3 B16
- Spindle taper shank MT 3 Ø 27 mm
- Reduction sleeve MT 3/2
- Coolant system
- Oilers
- Tie rod M12
- Service keys
