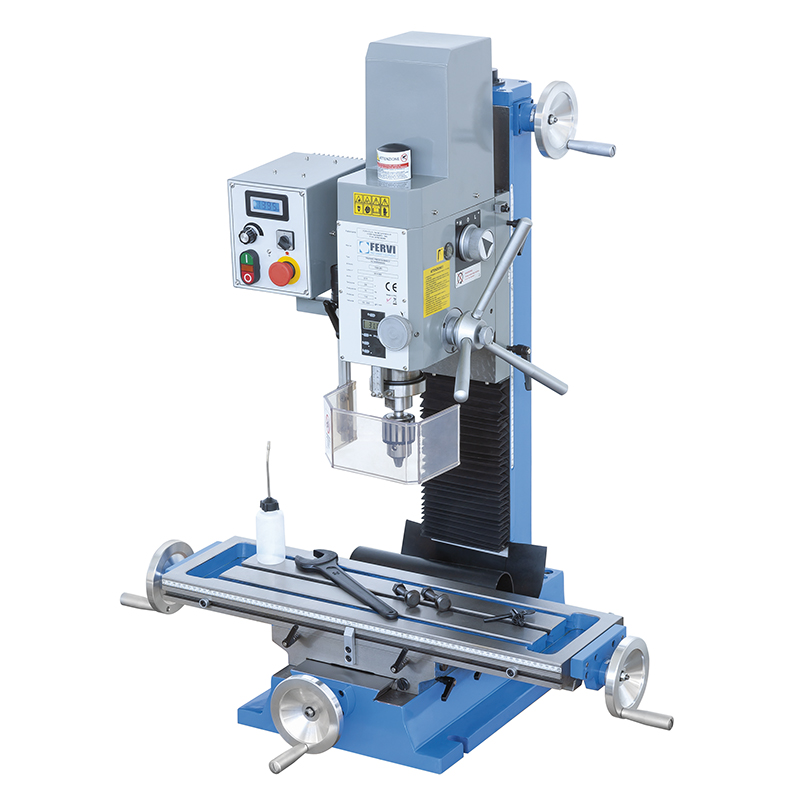

GEARED DRILLING MILLING MACHINE
news
Promo 24%
VARIABLE SPEED, WITH DIGITAL DISPLAY OF SPINDLE SPEED AND DIGITAL DISPLAY OF DEPTH.
Max drilling capacity on steel with pre-drilling hole(s235jr)
Ø 28 mm
Face milling cutter max
Ø 63 mm
End milling capacity
Ø 28 mm
Chuck sizes
3 - 16 mm B16
Approx spindle speeds
100 ÷ 2500 rpm ±10%
Head tilt left and right
±90°
Table dimensions
730 x 210 mm
Single-phase motor
230 V 50 Hz 1,1 kW
Battery type
Pila al litio (bottone)
Battery features
2 x 3 V CR2032
Battery weight (Kg)
0,008
Packaging dimensions
940 x 970 x 1100 mm
Included in the price
- Drill chuck with key 3 ÷ 16 mm B16
- Spindle drilled MT 3
- Oilcan
- Draw bar M12
- Service wrenches
