SELF CENTERING CHUCK

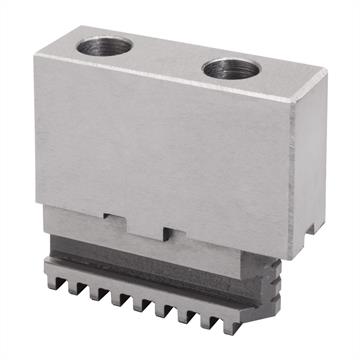

SINGLE GUIDE. INTEGRAL JAWS, CONCENTRIC CLAMPING, EQUIPPED WITH 1 SERIES CONSISTING OF 4 INTERNAL JAWS, 1 SERIES CONSISTING OF 4 EXTERNAL JAWS AND TIGHTENING KEY.
| D |
D1 |
D2 |
D3 |
H1 |
H |
h |
z-d |
Spanner square |
A - A1 |
B - B1 |
C - C1 |
Net weight |
Gross weight |
EAN Code |
| 80 mm |
55 mm |
66 mm |
16 mm |
66 mm |
50 mm |
3,5 mm |
3 - M6 mm |
8 mm |
2 - 22 mm |
25 - 70 mm |
22 - 63 mm |
1,8 kg |
2,04 kg |
8012667269579 |
| 100 mm |
72 mm |
84 mm |
22 mm |
74,5 mm |
55 mm |
4,5 mm |
3 - M8 mm |
8 mm |
2 - 30 mm |
30 - 90 mm |
30 - 80 mm |
3 kg |
3,41 kg |
8012667269586 |
| 125 mm |
95 mm |
108 mm |
30 mm |
84 mm |
58 mm |
4 mm |
3 - M8 mm |
10 mm |
2,5 - 40 mm |
38 - 125 mm |
38 - 110 mm |
5 kg |
5,58 kg |
8012667269593 |
| 160 mm |
130 mm |
142 mm |
40 mm |
95 mm |
65 mm |
5 mm |
3 - M8 mm |
10 mm |
4.5 - 55 mm |
50 - 160 mm |
55 - 145 mm |
8,5 kg |
8,90 kg |
8012667269609 |
| 200 mm |
165 mm |
187 mm |
65 mm |
109 mm |
75 mm |
5 mm |
3 - M10 mm |
12 mm |
4 - 85 mm |
65 - 200 mm |
65 - 200 mm |
15 kg |
15,70 kg |
8012667269616 |
| 250 mm |
206 mm |
226 mm |
80 mm |
120 mm |
80 mm |
5 mm |
3 - M12 mm |
12 mm |
6 - 110 mm |
80 - 250 mm |
90 - 250 mm |
24 kg |
25,35 kg |
8012667269623 |
| 320 mm |
270 mm |
290 mm |
100 mm |
142 mm |
90 mm |
6 mm |
3-M16 mm |
14 mm |
10 - 140 mm |
95 - 320 mm |
100 - 320 mm |
45 kg |
53,00 kg |
8012667313418 |
| 400 mm |
340 mm |
368 mm |
130 mm |
158 mm |
100 mm |
9 mm |
3-M16 mm |
15 mm |
15 - 210 mm |
120 - 400 mm |
120 - 400 mm |
74 kg |
84,00 kg |
8012667313425 |
